Spec

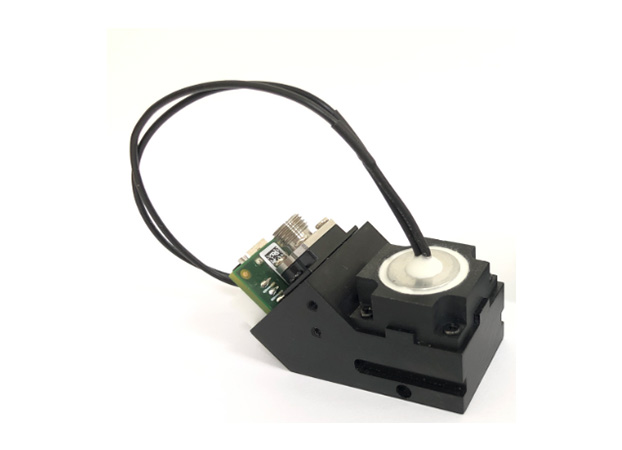

| Illumination Module: | one 5W tungsten filament lamp with reflector and constant current (CC) driver board with lamp on-off control interface |
Time to Stable: | ~ 20 minutes |
| Lamp Life Hours: | 10,000 | Power Supply: | DC 5V/2A |

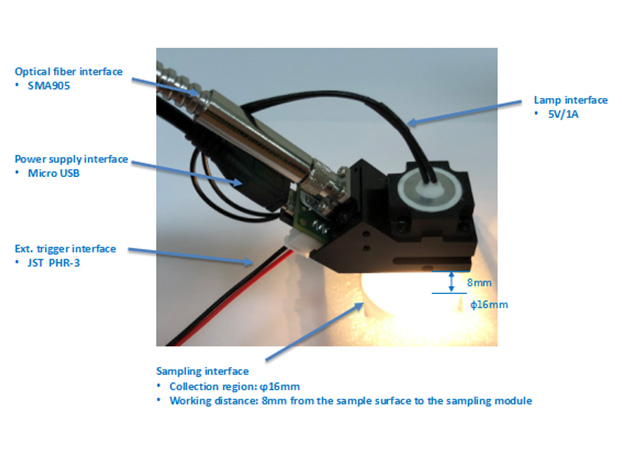

| Sampling Module: | Diffuse reflective sampling module | Dimensions: | 49 mm * 27 mm * 27 mm |
| Collection Region: | Typ. 16mm in diameter | Weight: | 34 g (without spacer), 39g (with spacer and screws) |
| Working Distance: | Typ.8mm from the sample surface to the sampling module | Operating Temperature: | 0~40℃,RHMax.85% |
| Fiber Optic Connector: | SMA905 | Accessory : | Spacer (for contact measurement) |
